Laboratory & Research Applications

Type II standard.
Type I on demand.

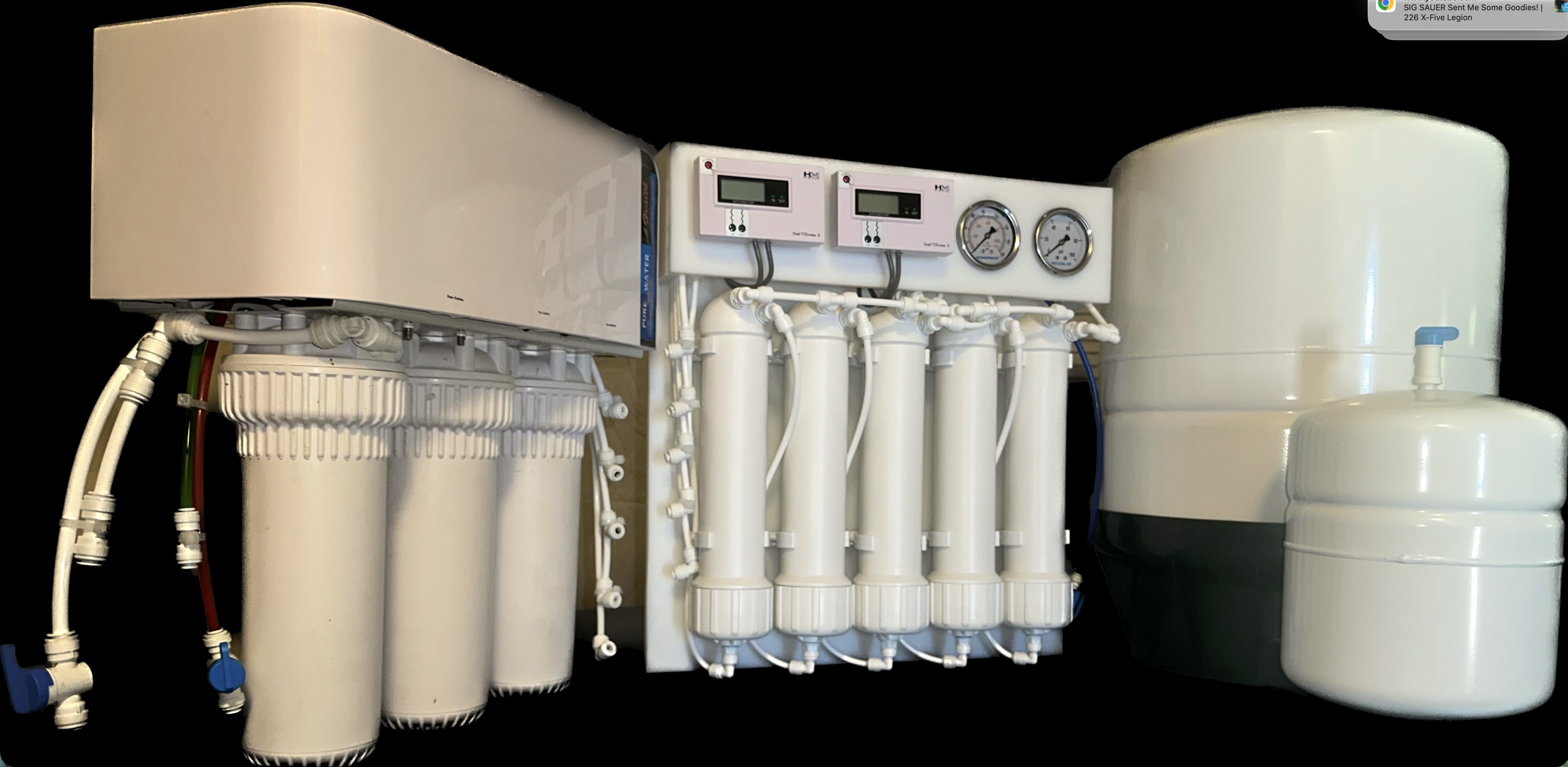

The SD5 delivers consistent Type II laboratory grade water as standard — and parts-per-billion Type I purity with the mandatory 2-stage DI configuration. Verifiable. On demand. Without the maintenance burden of a steam distiller.

SD5 in laboratory setting photo goes here

Watch

Pure water for your lab — consistent, verifiable, on demand

Steve explains the SD5's two configurations and what makes them suitable for laboratory and research applications.

Video coming soon

Two configurations

Choose the purity level your application requires

Standard Configuration

SD5 — 5-Membrane RO

1–3 ppm
Typical output · Type II/III equivalent

Five reverse osmosis membranes with a dedicated 2-gallon pure water flush tank that backwashes all membranes on every cycle. Eliminates TDS Creep and bacteria — delivering consistent Type II/III grade water without the electricity cost of a steam distiller.

Suitable for:
General laboratory use Buffer preparation Glassware rinsing Media preparation Autoclave water Equipment cooling
DI Configuration

SD5 + 2-Stage Deionization

< 0.1 ppm
Parts-per-billion · Type I equivalent

The SD5's 5-membrane RO output feeds a mandatory 2-stage mixed-bed deionization system — delivering Type I equivalent ultrapure water. The RO pre-treatment dramatically extends DI resin life compared to running tap water through DI directly.

Required for:
HPLC mobile phases Mass spectrometry Molecular biology Cell culture Atomic absorption Trace metal analysis

Why the SD5

Consistent purity. Verifiable output. No surprises.

  • ✓Consistent Type II/III output — no TDS Creep between cycles
  • ✓No bacteria — dedicated flush tank eliminates membrane stagnation
  • ✓75 to 100 gallons per day — enough for high-volume lab environments
  • ✓No proprietary parts — standard filters available from multiple suppliers
  • ✓No monthly descaling or tank sanitizing
  • ✓DI resin lasts significantly longer than tap-fed DI systems
  • ✓Free phone support for installation and setup
  • ✓Optional 2-stage DI upgrade for Type I equivalent output

Typical output verification

Municipal tap water input 420 ppm TDS
SD5 standard output 1 ppm TDS
SD5 + DI output < 0.1 ppm TDS
Contaminant removal 99.95%+

Results verified with calibrated TDS meter. Actual output varies with source water quality and membrane condition.

Product Wall-Mounted Dimensions
3-Canister Pre-Filter: 16.5"W x 19"H x 7"D 5-Membrane Panel: 18"W x 19.5"H x 4"D
Product Floor-Standing Dimensions
12-Gallon Holding Tank: 25"H x 16" Dia 2-Gallon Flush Tank: 16"H x 11" Dia

Ready to specify the SD5 for your lab?

Steve takes every call personally. Tell him about your application and he'll recommend the right configuration.

(520) 261-8443
Call or text Steve directly
